Heatplate service parts
Heizplatten Ersatzteile
For servicing defective Heatplates
Zur Reparatur von defekten Heizplatten
TC5/7 Lite Smart:
991.100005.00 Wire Harness

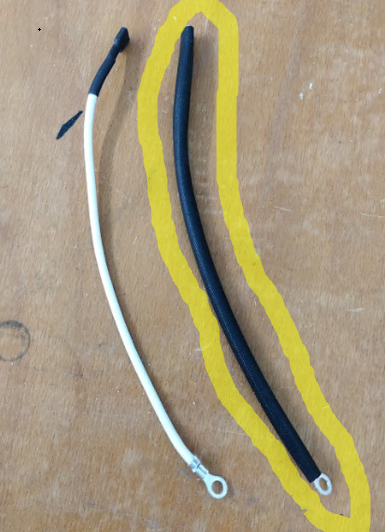

992.10000022.06 Wire Temperature Fuse
991.100003.00 Temperature Fuse

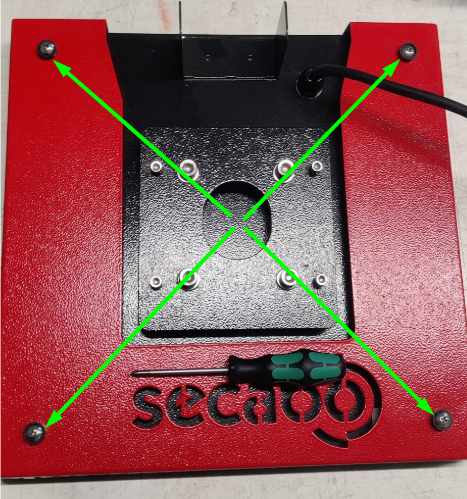

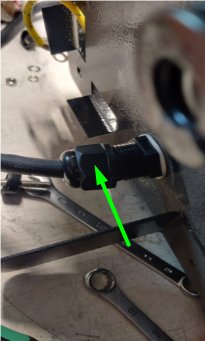

Unscrew the 4x screws on the sides as well as the large 4x Allen Screws, unscrew the plastic housing of the cable:

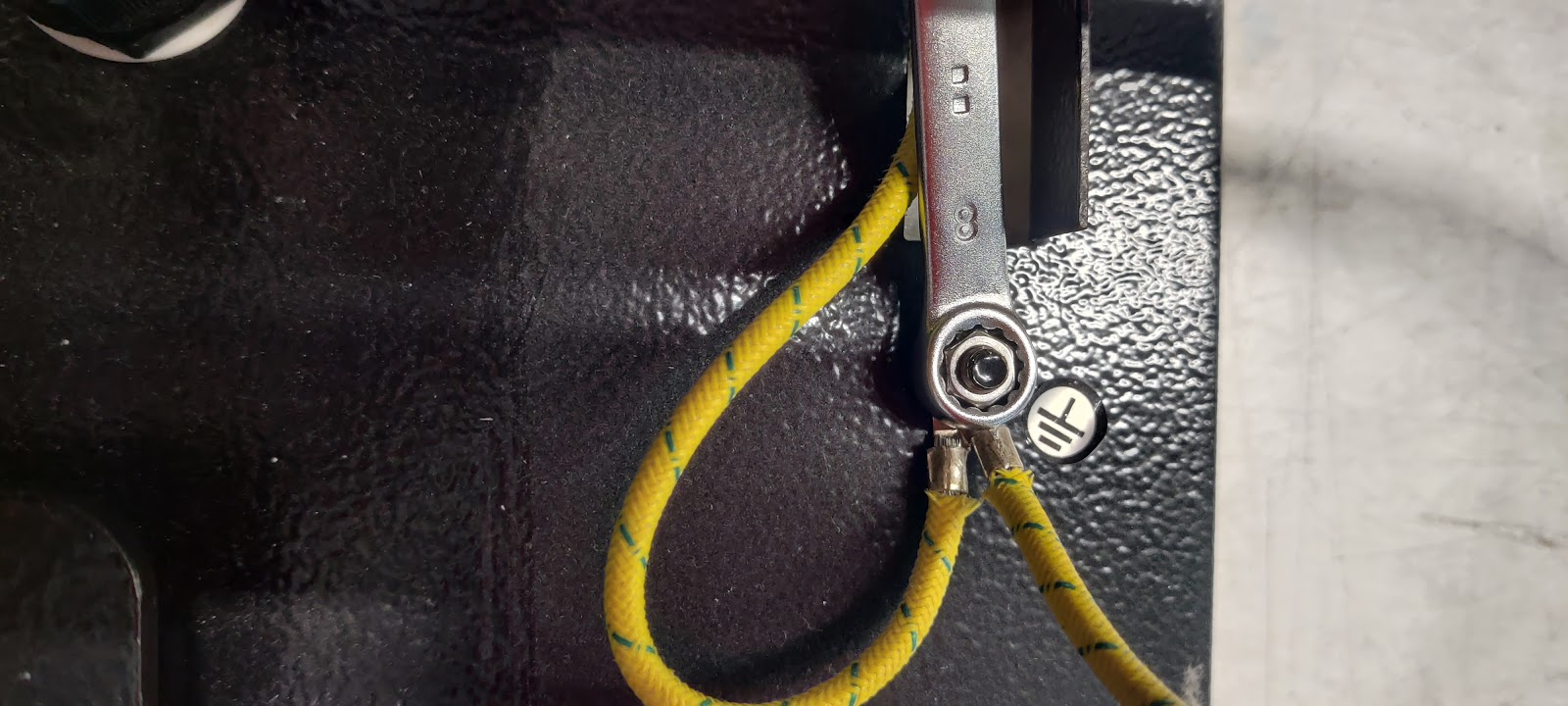

Unscrew the Earth connection with a 8mm wrench
Open the Heizplatte and put the isolation sheet to the position shown below:
Unscrew/ slip off the dedicated part
Screw the plate back together in reverse order
